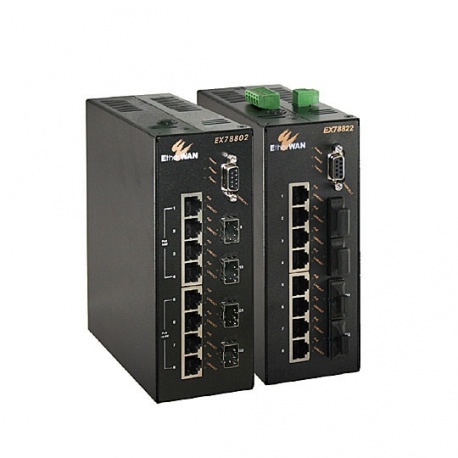

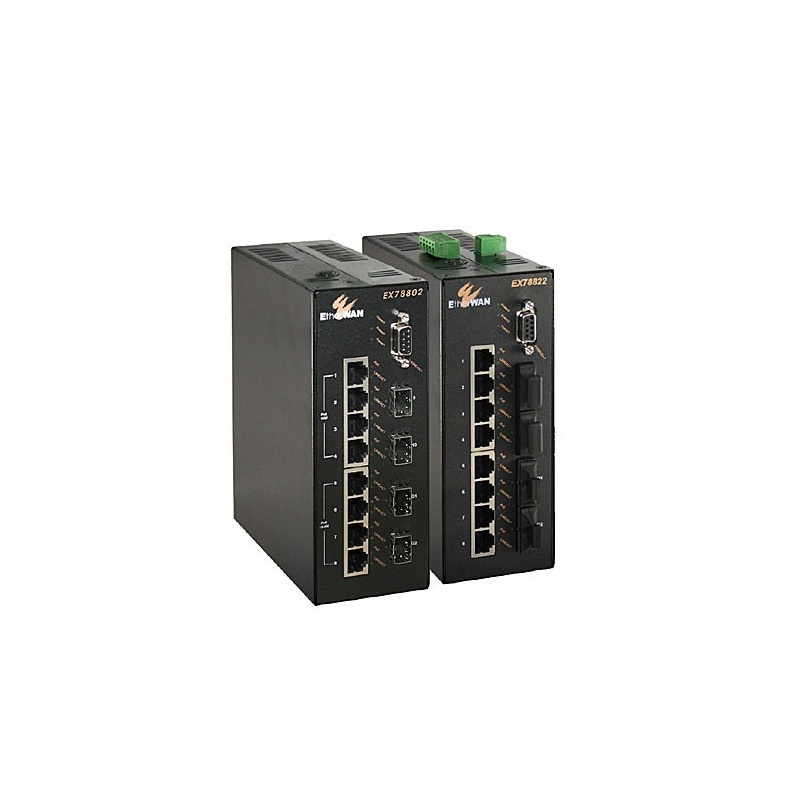

EX78000 Series
Managed Hardened 10-port 10/100BASE (8 x PoE) and 2-port Gigabit Ethernet Switch (AXIOMTEK)
EX78000 Series
Managed Hardened 10-port 10/100BASE (8 x PoE) and 2-port Gigabit Ethernet Switch (AXIOMTEK)
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Supports PoE Power Sourcing Equipment (PSE)
PoE control and Scheduling
Supports \-ring and RSTP/MSTP/STP for Ethernet redundancy
IP Multicast Filtering through IGMP Snooping V1, V2 & V3
Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
IEEE802.1p QoS with four priority queues
MAC-based trunking and LACP
IEEE802.1x Security
Bandwidth Rate Control
Per-port programmable MAC address locking
Up to 24 Static Secure MAC addresses per port
Port mirroring
Supports NTP
DHCP Client/Server
1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
Full wire-speed forwarding rate
-40C to 75C (-40F to 167F) operating temperature range, tested for functional operation @ -40C to 85C (-40F to 185F)
More information about EX78000 Series
PoE control and Scheduling
Supports \-ring and RSTP/MSTP/STP for Ethernet redundancy
IP Multicast Filtering through IGMP Snooping V1, V2 & V3
Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
IEEE802.1p QoS with four priority queues
MAC-based trunking and LACP
IEEE802.1x Security
Bandwidth Rate Control
Per-port programmable MAC address locking
Up to 24 Static Secure MAC addresses per port
Port mirroring
Supports NTP
DHCP Client/Server
1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
Full wire-speed forwarding rate
-40C to 75C (-40F to 167F) operating temperature range, tested for functional operation @ -40C to 85C (-40F to 185F)
