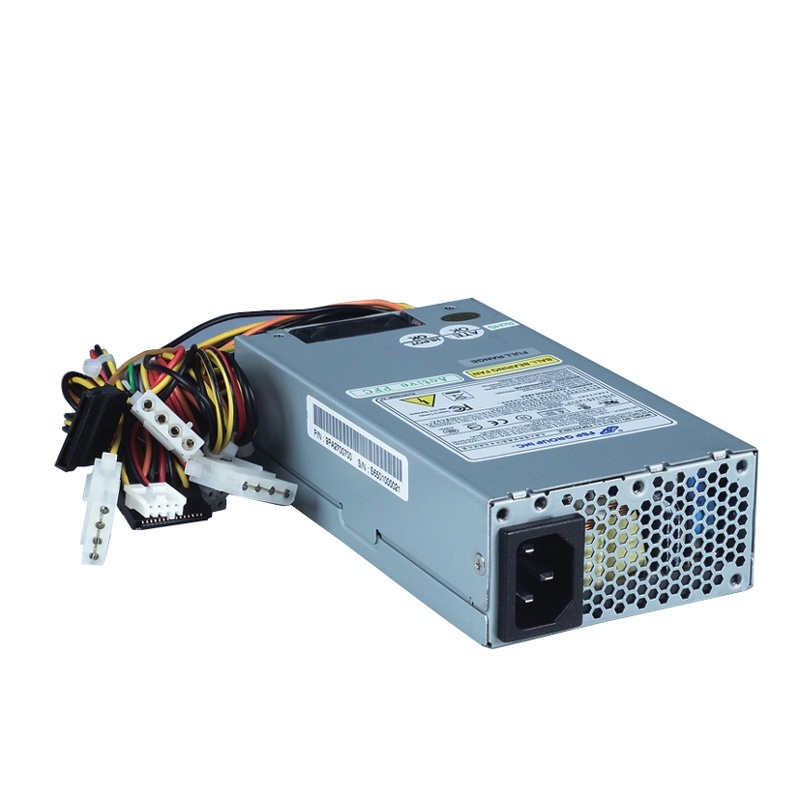

PS270-1U
1U Type Power Supply; ATX270W (AXIOMTEK)
-
eBOX530-840-FL
Fanless Embedded System with Intel Atom Processor E3825 1.33 GHz, VGA or HDMI, GbE LAN, 2 COM and 4 USB (AXIOMTEK)
-
M-4132
Remote Maintenance with voice streaming Solution (ICP DAS / ICP CON)
-
PISO-PS200
High speed 2 axis motion control card (ICP DAS / ICP CON)
PS270-1U
1U Type Power Supply; ATX270W (AXIOMTEK)
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Input Range: 90 ~ 264VAC Full Range
Output Voltage:
+5V, 18A (0.5A min)
+3.3V, 16A (0.5A min)
+12V1, 16A (1A min)
+12V2, 10A (1A min)
-12V, 0.8A
+5Vsb, 2.5A
MTBF(hours): At 25C, 100,000h
Safety: TUV, CSA 22.2 NO.60950-1, IEC, UL, NEMKO, CE
Dimensions: 150 x 81.5 x 40.5 mm
Compatible with Axiomtek products: AX61120 / AX60530
More information about PS270-1U
Output Voltage:
+5V, 18A (0.5A min)
+3.3V, 16A (0.5A min)
+12V1, 16A (1A min)
+12V2, 10A (1A min)
-12V, 0.8A
+5Vsb, 2.5A
MTBF(hours): At 25C, 100,000h
Safety: TUV, CSA 22.2 NO.60950-1, IEC, UL, NEMKO, CE
Dimensions: 150 x 81.5 x 40.5 mm
Compatible with Axiomtek products: AX61120 / AX60530
More information about PS270-1U
