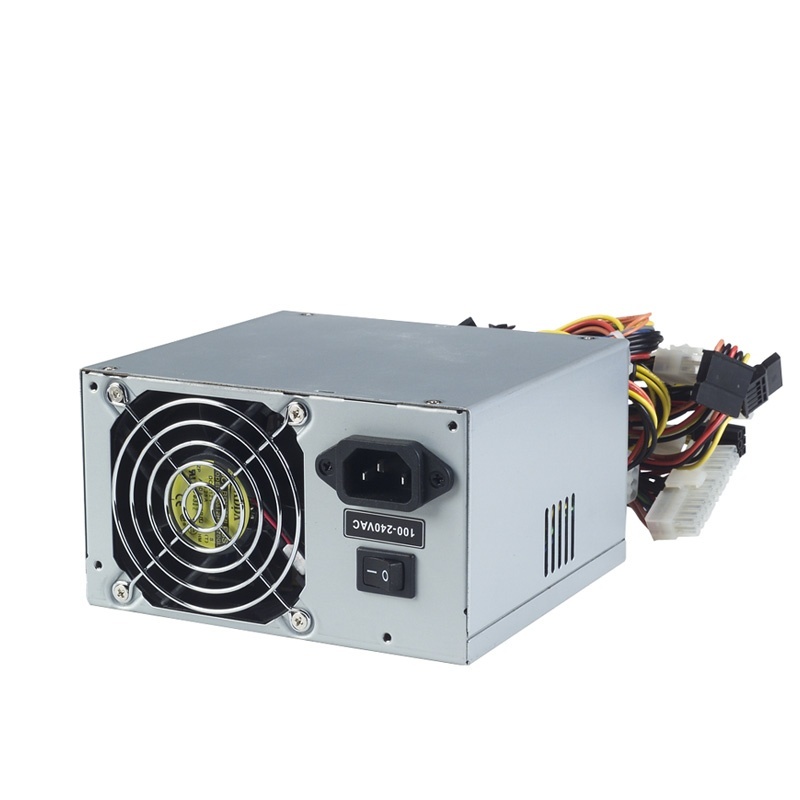

PS500-XP2
PS/2 Type; ATX500W (AXIOMTEK)
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Input Range: 90 ~ 265VAC Full Range
Output Voltage:
+5V, 24A (0.3A min)
+3.3V, 24A (0.5A min)
+12V, 34A (1A min)
+12V1, 17A (1A min)
+12V2, 17A (1A min)
-12V, 0.8A
+5Vsb, 2.5A
MTBF(hours): At 25C 100,000h
Safety: TUV, CUL, CB, IEC60950-1, GB4943-2001, UL60950-1, EN60950-1
Dimensions: 150 x 140 x 86 mm
Compatible with Axiomtek products: AX61221/AX61222/AX60501/AX60551/AX60552/AX61400/AX6145/AX6156LE/AX61492
More information about PS500-XP2
Output Voltage:
+5V, 24A (0.3A min)
+3.3V, 24A (0.5A min)
+12V, 34A (1A min)
+12V1, 17A (1A min)
+12V2, 17A (1A min)
-12V, 0.8A
+5Vsb, 2.5A
MTBF(hours): At 25C 100,000h
Safety: TUV, CUL, CB, IEC60950-1, GB4943-2001, UL60950-1, EN60950-1
Dimensions: 150 x 140 x 86 mm
Compatible with Axiomtek products: AX61221/AX61222/AX60501/AX60551/AX60552/AX61400/AX6145/AX6156LE/AX61492
More information about PS500-XP2
