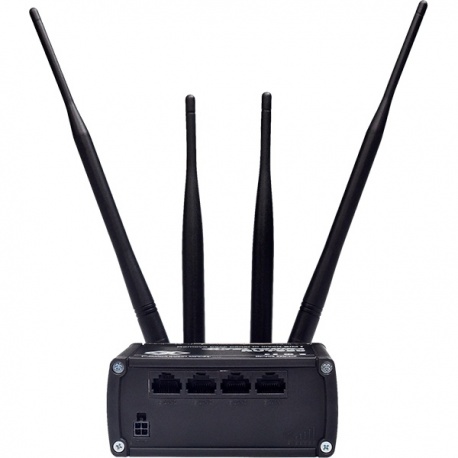

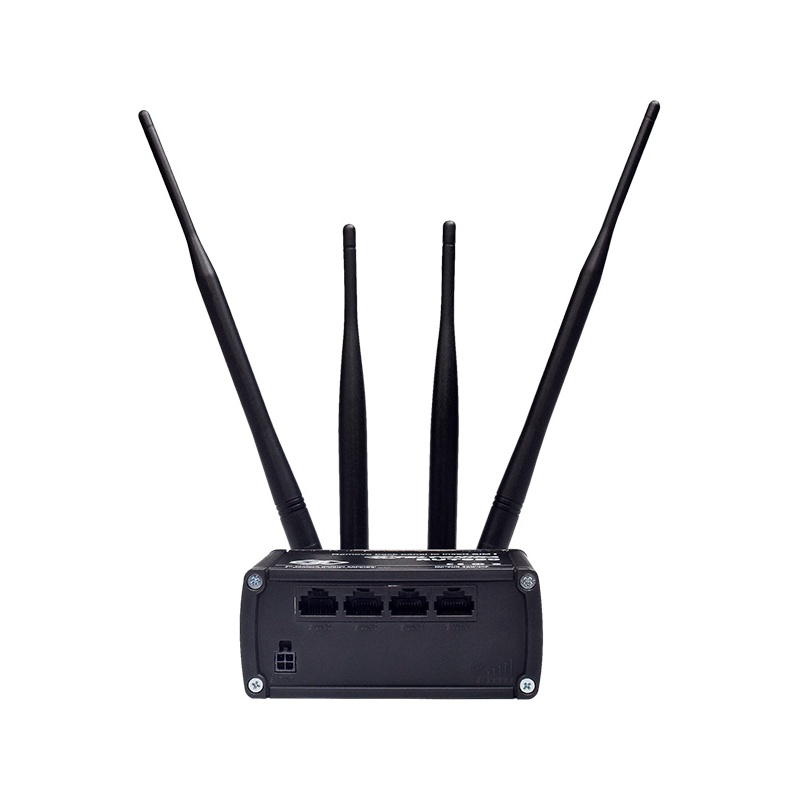

RUT950

RUT950 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication. RUT950 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

MOBILE

Mobile module: 4G (LTE) Cat 4 up to 150 Mbps, 3G Up to 42 Mbps, 2G Up to 236.8 kbps.
SIM switch: 2 SIM cards, auto-switch
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS toSMS, scheduled SMS, SMS autoreply, SMPP

ETHERNET

IEEE 802.3, IEEE 802.3u standards
3 x LAN 10/100Mbps Ethernet ports
1 x WAN 10/100Mbps Ethernet port
Supports auto MDI/MDIX

WIRELESS

IEEE 802.11b/g/n WiFi standards
2x2 MIMO
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401 2.495 GHz WiFi frequency range*
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address

HARDWARE

High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
5.5/2.5mm DC power socket (terminal block connector optional)
Reset/restore to default button
2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
4 x Ethernet LEDs, 1 x power LED
1 x bi-color connection status LED, 5 x connection strength LEDs
Optional: Din rail or panels with integrated mounting flanges

SOFTWARE

OpenVPN, IPsec, GRE, L2TP, PPTP
Backup WAN
PPPoE
Dynamic DNS
SMS and ping reboot, periodic reboot
Status, configuration via SMS
Send/read SMS via HTTP POST/GET
Monitoring by SNMP, SNMP trap, TR-069
System log to record the status of the router
VRRP
QoS and web filter
Wireless hotspot with or without RADIUS server
SIM card switch controlled by signal, data limit, roaming
Configuration profiles
Firmware update from bootloader via WebUI
Restore point

ELECTRICAL & MECHANICAL

Dimensions (H x W x D) 80 mm x 106 mm x 46 mm
Weight 250 g
Power supply 100 240 VAC -> 9 VDC wall adapter
Input voltage range 9 30VDC
Power consumption < 7 W
Operating temperature -40 C to 75 C
Storage temperature -45 C to 80 C
Operating humidity 10 % to 90 % non-condensing
Storage humidity 5 % to 95 % non-condensing
