RESI-MBUS48-ETH
M-Bus to Modbus TCP Gateway, max. 48 M-Bus slaves and 1200 Modbus registers
-
CAN-2057C CR
CANopen Module of 16-channel Isolated Open-collector Digital Output (ICP DAS / ICP CON)
-
EWB-T28
External Wall Box for TPD-280/TPD-280U/TPD-283 Devices (ICP DAS / ICP CON)

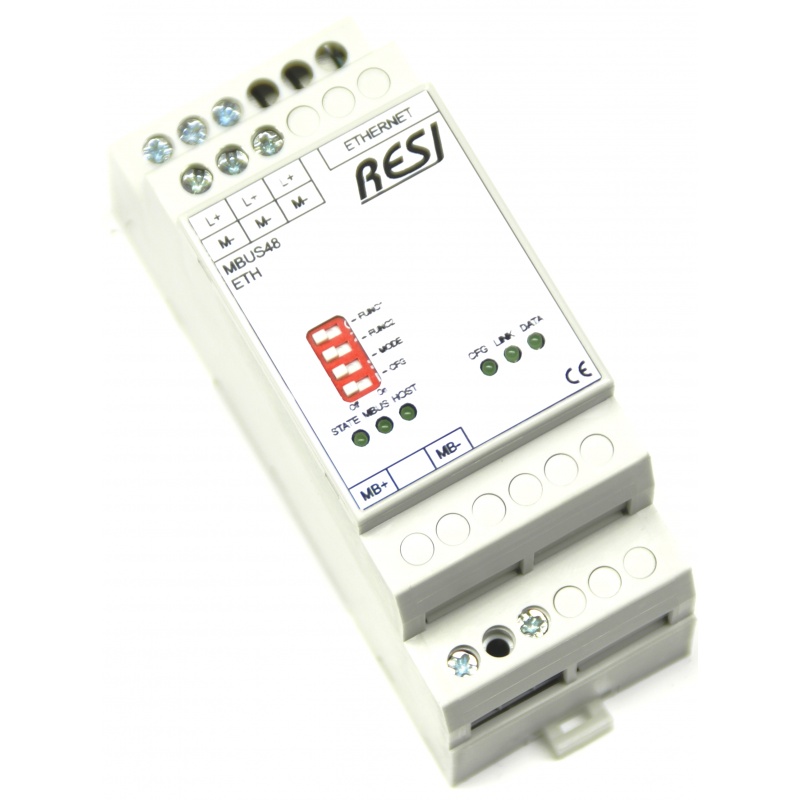

RESI-MBUS48-ETH
M-Bus to Modbus TCP Gateway, max. 48 M-Bus slaves and 1200 Modbus registers
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Consisting of a MeterBus converter with Ethernet interface for 48 smart meter with MBUS interface, maximum 48 meter (=unit loads) and 1200 MODBUS registers, host communication via Ethernet with MODBUS/TCP server or ASCII text protocol, MBUS communication speed from 300bps to 57600bps, Mbus and Ethernet are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software or with our free PC software MODBUSConfigurator
Size (LxBxH):35.8x90x58mm
Weight:90g
Power supply:12-48V=
Power consumption:8.4W
Housing:2MU
Mounting:mountable on 35mm EN50022 DIN rail
Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
Certificate:CE
Protection class:IP20
