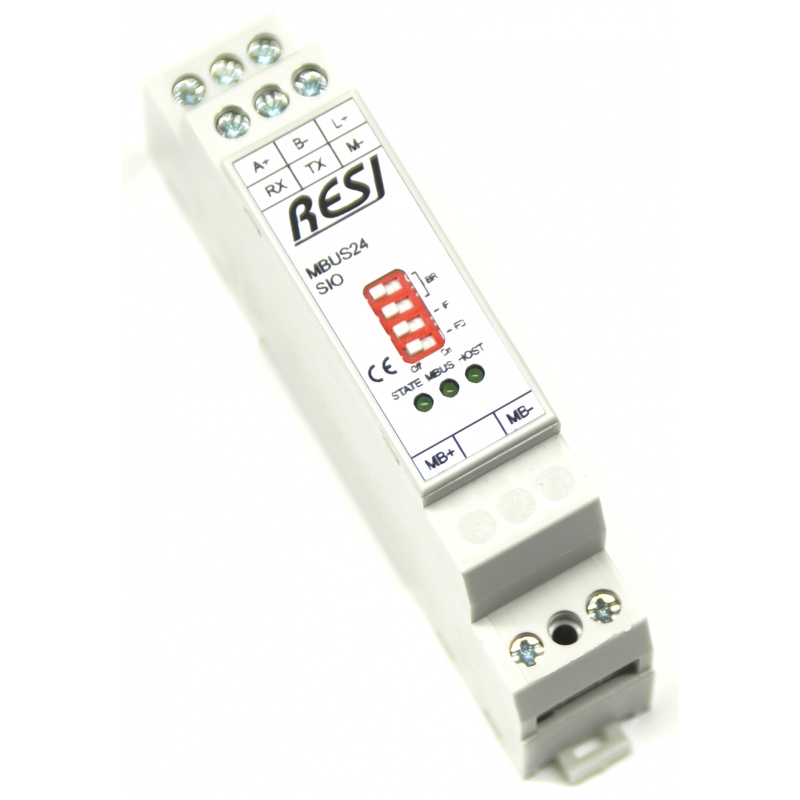

RESI-MBUS24-SIO
M-Bus to Modbus RTU Gateway, max. 24 M-Bus slaves and 1000 Modbus registers
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Consisting of a serial MeterBus converter for 24 smart meter with MBUS interface, maximum 24 meter (=unit loads) and 1000 MODBUS registers, host communication via RS232 or RS485 with MODBUS/RTU slave or ASCII text protocol, host baud rates: 300-256000Bd, none, even or odd parity, 8 data bits, 1 or 2 stop bits, MBUS communication speed from 300bps to 57600bps, Mbus and Modbus are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software or with our free PC software MODBUSConfigurator
Size (LxBxH):17.5x90x58mm
Weight:55g
Power supply:12-48V=
Power consumption:8.0W
Housing:1MU
Mounting:mountable on 35mm EN50022 DIN rail
Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
Certificate:CE
Protection class:IP20
