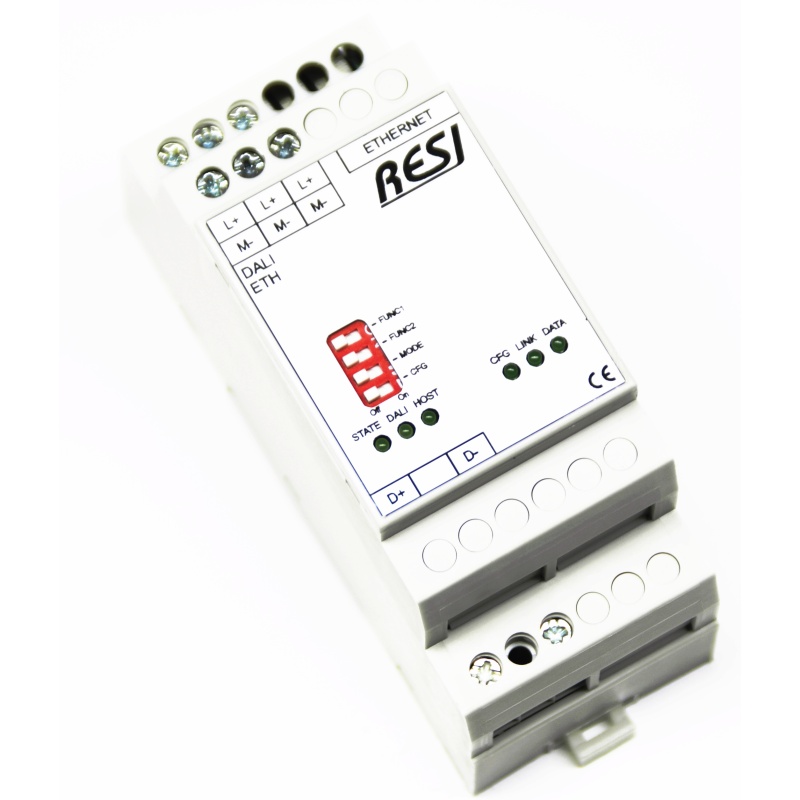

RESI-DALI-ETH

Consists of a serial gateway to the DALI bus, the DALI standards DALI 1.0, DALI 2.0, DALI DT6, DALI DT8 are supported, the module is a DALI master that can send and receive all common DALI frames, host communication via Ethernet with MODBUS/TCP server or ASCII text protocol, DALI and Modbus are galvanically separated, configuration and testing of the module via our free LIBRE OFFICE (R ) based configurator software or via our free PC software MODBUSConfigurator

 Technical Specification

• Size (LxBxH):35.8x90x58mm
• Weight:83g
• Power supply:12-48V=
• Power consumption:1.4W
• Housing:2MU
• Mounting:mountable on 35mm EN50022 DIN rail
• Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
• Certificate:CE
• Protection class:IP20
• TARIC number:8538 90 91
• Support of the DALI 2.0 standard
• Control of DALI device type 8 dimmers for RGB, cold white-warm white or RGBW LED stripes
• Sending and receiving of DALI 2.0 telegrams (24 bit)
• Sending and receiving of eDALI telegrams (25 bit)
• Improved configuration software MODBUSConverter for easier installation and commissioning of a DALI lighting network
